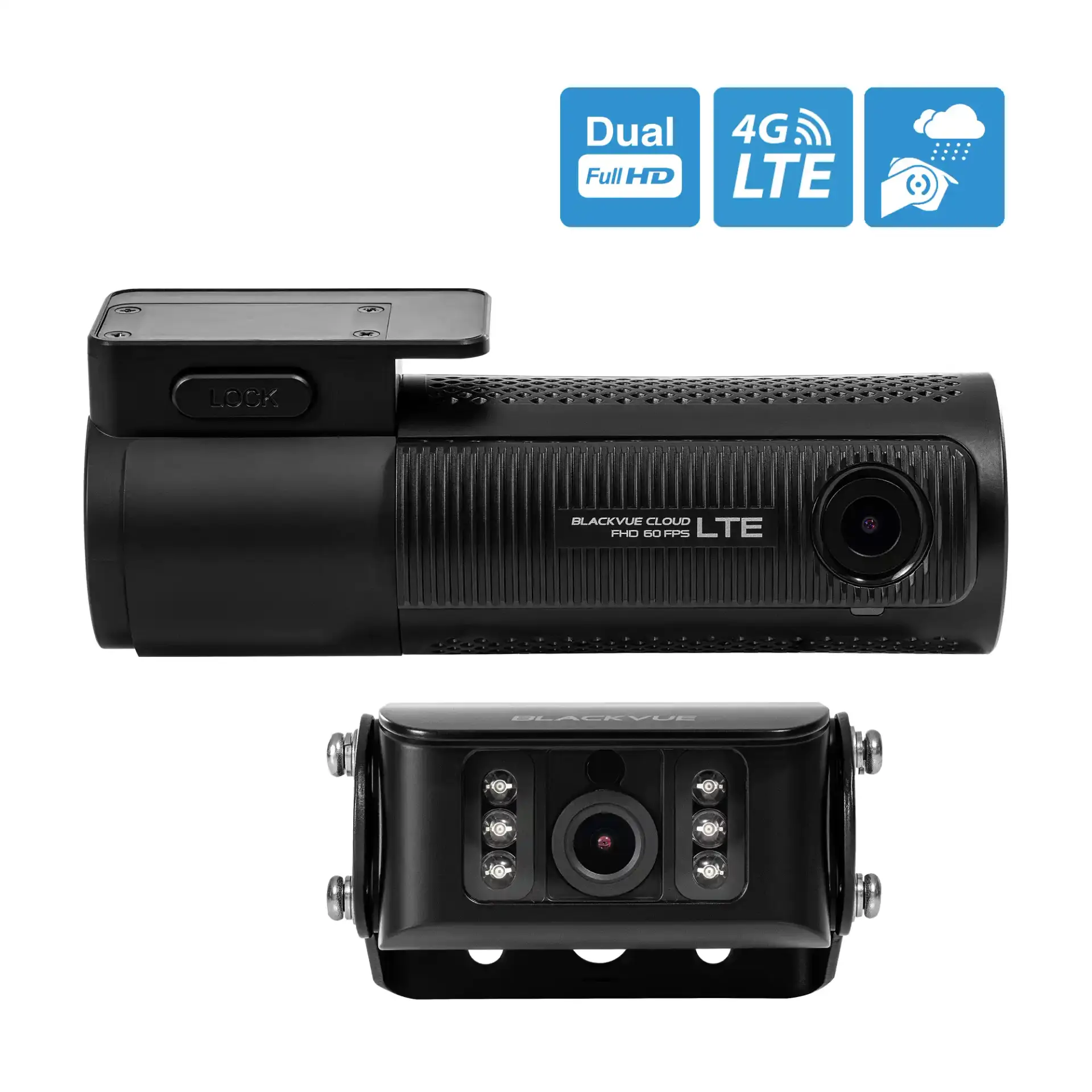

Blackvue DR770X-2CH Truck LTE

Description

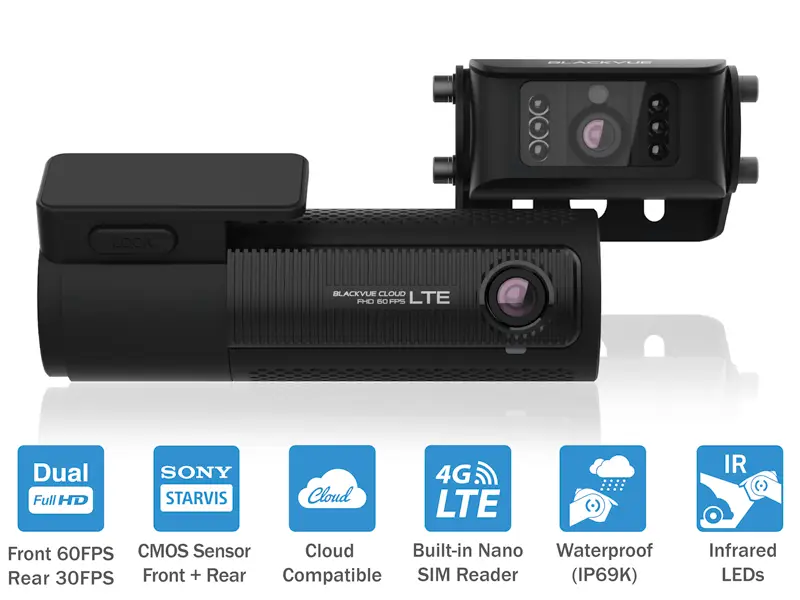

Truck Dashcam with Built-in LTE

The DR770X-2CH TRUCK LTE is a Cloud dash cam with built-in LTE and waterproof rear camera.

The rear camera is connected by a 15-meter (49ft) video cable so you can mount it externally on a variety of trucks and heavy vehicles.

Best image quality night and day with Full HD Sony STARVIS™ image sensors front and rear.

Easy Cloud connectivity with built-in Nano SIM card reader*, making it a dash cam of choice for commercial vehicle protection and fleet tracking.

Effortless set up with the BlackVue App.

(*) Data plan not included.

A Truck Dashcam Built for the Cloud

Built-in 4G LTE connectivity makes connecting to the Cloud hassle-free.

Dual Full HD 1080p cameras (front 60 / rear 30 frames per second) provide fluid videos of the front and back of your vehicle.
View angle: front camera: 139 degrees; rear camera: 116 degrees.
STARVIS imaging sensors—a reference in video clarity under low light—equip both front and rear cameras, so whether you are driving or parked, crucial details are captured perfectly.

STARVIS is a trademark of Sony Corporation.

Infrared External Rear Camera

With Rugged Metal Waterproof Casing
With its metal waterproof casing the rear camera of the DR770X-2CH TRUCK is built to withstand most weather conditions. Its Ingress Protection rating (IP69K) means it can even withstand power washing. It is designed to be installed at the rear of trucks or heavy vehicles. We recommend securing it in place on a flat surface using the provided screws. The luminosity sensor detects ambient brightness and automatically activates the six infrared lights to help identify vehicles and objects in the dark.

Waterproof Coaxial Cable

The 15m (49ft) high-quality waterproof coaxial cable connects the front and rear cameras.

The waterproof rear camera and the coaxial cable are screwed together to provide tight and water-resistant connection.

Its length makes it ideal for trucks and trailers and guarantees a pristine image even over long distance.

Mobile Hotspot Function

Turn your BlackVue into a Wi-Fi router for your car
With Mobile Hotspot Function, your compatible BlackVue can now turn into a mobile internet router for up to five devices concurrently. This means you and your passengers can now use your BlackVue’s internet on your laptop, portable game console, tablet or mobile.

To connect to the BlackVue, simply open your devices’ Wi-Fi menu, select the BlackVue and enter the dashcam’s Wi-Fi password.

Seamless Pairing with the BlackVue App

Effortless setup. Secure. No password.

With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.

Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

LTE, Wi-Fi and GPS All Built-in

GNSS (GPS+GLONASS)
Speed: speed data will be overlaid in the video (can be turned off in the settings).
You can set speed display in Kilometers per hour (Km/h) or Miles per hour (Mph).
Location: visualize your vehicle’s location in the BlackVue App or Viewer’s Map.

Connect to your dashcam over Wi-Fi or the Cloud
Wi-Fi lets you connect to your BlackVue with a smartphone or tablet.
LTE gives you access to your BlackVue over the Cloud from anywhere, anytime.

BlackVue Cloud

Me and My Car. Connected.

Connect to your BlackVue anytime, from anywhere in the world with BlackVue Cloud.

Receive Push Notifications on your phone whenever the dashcam detects an impact on your parked vehicle, and see for yourself with Remote Live View. Even better, let BlackVue upload critical footage—such as break-in or hit and run—in real time to the Cloud with Live Event Upload.
Play and download videos from your dashcam or the Cloud from anywhere and back up important videos to the free Cloud storage.
Enjoy Two-way Voice Communication with the driver from the app through the BlackVue’s integrated speaker and mic. Check the BlackVue Cloud page for more information.

Built-in Speaker, Impact Sensor and Motion Detection

Speaker: your dashcam tells you when it turns on, shuts down or detects errors.
Accelerometer: detects impacts to trigger Event recording. Enables Parking Mode* when stationary for 5 minutes.
Motion detection: while in Parking Mode, your dashcam can record videos as movement is detected by either the front or interior camera.
Video filters (N,E,P,M): display the types of videos you need in the BlackVue App and Viewer. The filters are Normal, Event (Impact), Parking motion, Manual Event.

(*) Parking Mode Kit or Battery is required. Learn more about Parking Mode.

BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)

Easily manage your video files

Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.

With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.

The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.

Sleek Interface

Touch sensor
Tap the touch sensor to trigger Manual Event videos.

Secure microSD card access
Unplug the DC in power connector and pop the cover open to reveal the microSD card slot.

Your videos are safe

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.

Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

Tamper-Proof Case (Optional)

The Tamper-Proof Case (reference: BTC-3A) is a security accessory that blocks physical access to the microSD card slot, and prevents the unplugging of the power and coaxial cables, thus highly reducing risks of data tampering.

Note: the BTC-3A replaces the original dashcam mount.

Native Parking Mode

Hardwiring cable included
DR770X LTE Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR770X LTE Series is also compatible with all BlackVue Parking Mode Kits and Batteries.

INTELLIGENT PARKING MODE MONITORING

with the Power Magic accessories.

Enjoy peace of mind knowing that your car is under protection while you are away.

Parking Mode Kit

Parking Mode Batteries

BlackVue automatically switches to Parking Mode to monitor your parked vehicle.
Thanks to video buffer, the few seconds leading to triggering events are also recorded.
DR770X-2CH Truck LTE supports two Parking Mode options:

Motion & Impact Detection Parking Mode detects both:

• Motions recorded by the image sensor (marked “P” in the file list).
• Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).

Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.

Continuously records at 1FPS (one frame per second). Videos are played back at 30FPS.
1-minute Time lapse Parking Mode video = 30 minutes real time coverage.
Cover a period of more than 100 hours on a 64GB microSD card front and rear at the highest (Extreme) quality setting.
When an impact is detected, the dashcam creates a buffered Event video.

And also:

Parking Mode Event Voice Notifications:
Upon exiting Parking Mode, your BlackVue tells you if Events were recorded when you were away from your car, so you can check right away the Event videos on the BlackVue App.

Scheduled Reboot:
Schedule a daily automatic reboot (optional—at night by default) to minimize potential errors. Reboots happen only if the dashcam is in Parking Mode and not writing data to the microSD card.

Super stealthy:
Completely turn off all LED indicators in Parking Mode. Only the recording LED indicator facing the interior of the vehicle will blink when motion or impact is detected.
