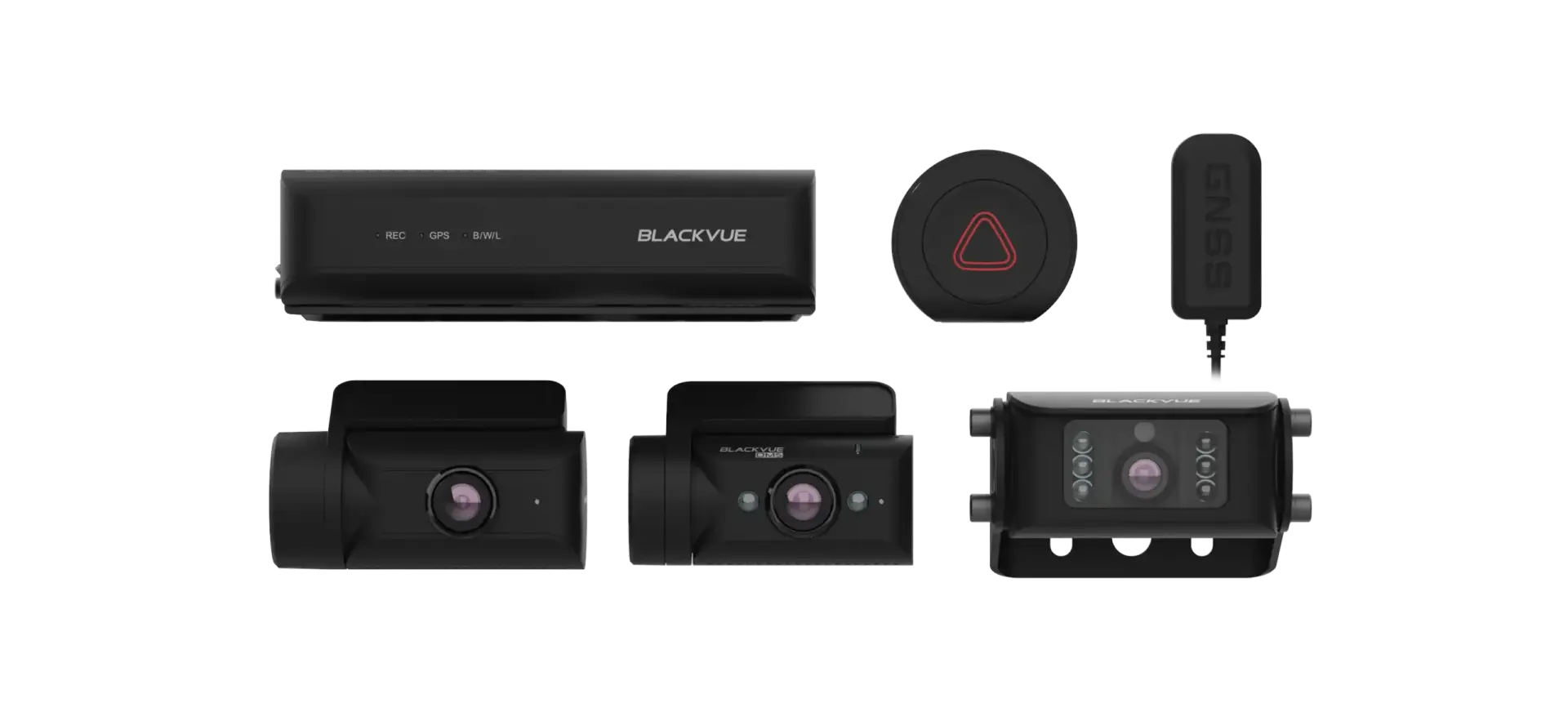

Blackvue DR770X Box-3CH DMS Truck Pro

Description

Cloud-Compatible

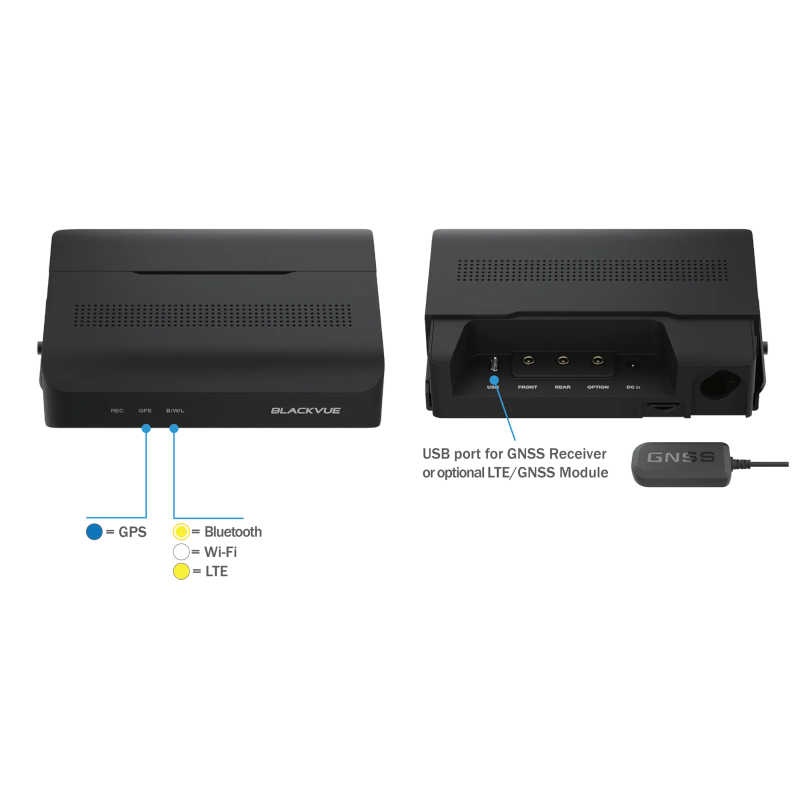

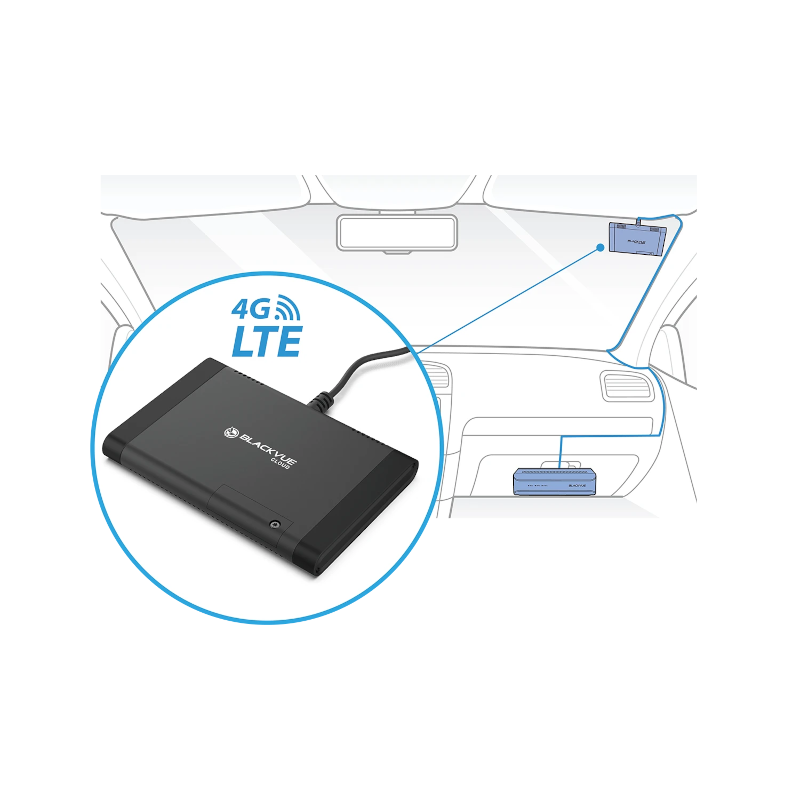

GPS Receiver, Wi-Fi and Optional LTE Module

blackvue-d970x-box-plus-lte-connectivity-module-cm100glte-hub-graphic1

blackvue-d770x-box-pro-connectivity-graphic-11

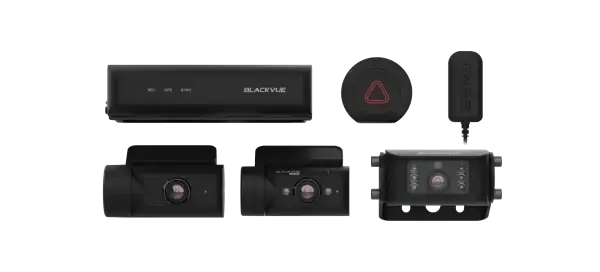

Triple Camera Protection

Complete your setup with up to two cameras of your choice

blackvue-truck-rear-camera-ip69k-erc1-3000-scaled

blackvue-interior-infrared-dms-camera-rc1-dms-3000-scaled

DR770X-BOX-3CH-DMS-TRUCK-PRO-01-scaled

blackvue-front-camera-fc1-copy-1536x1027

STARVIS™ CMOS Sensors

Front camera (FC1):

Sensor: 2.1MP Sony STARVIS™ CMOS sensor.
Resolution: Full HD (1920×1080).
Framerate: 60 frames per second.
Diagonal view angle: 131 degrees.
Max bitrate: 16 megabits per second.

Standard Rear camera (RC1):

Sensor: 2.1MP Sony STARVIS™ CMOS sensor.
Resolution: Full HD (1920×1080).
Framerate: 30 frames per second.
Diagonal view angle: 131 degrees.
Max bitrate: 10 megabits per second.

External Waterproof Rear camera (ERC1):

Sensor: 2.1MP Sony STARVIS™ CMOS sensor.
Resolution: Full HD (1920×1080).
Framerate: 30 frames per second.
Diagonal view angle: 116 degrees.
Max bitrate: 10 megabits per second.

Ultrawide Interior Infrared camera (RC1-IR):

Sensor: 2.1MP Sony STARVIS™ CMOS sensor.
Resolution: Full HD (1920×1080).
Framerate: 30 frames per second.
Diagonal view angle: 180 degrees.
Max bitrate: 10 megabits per second.

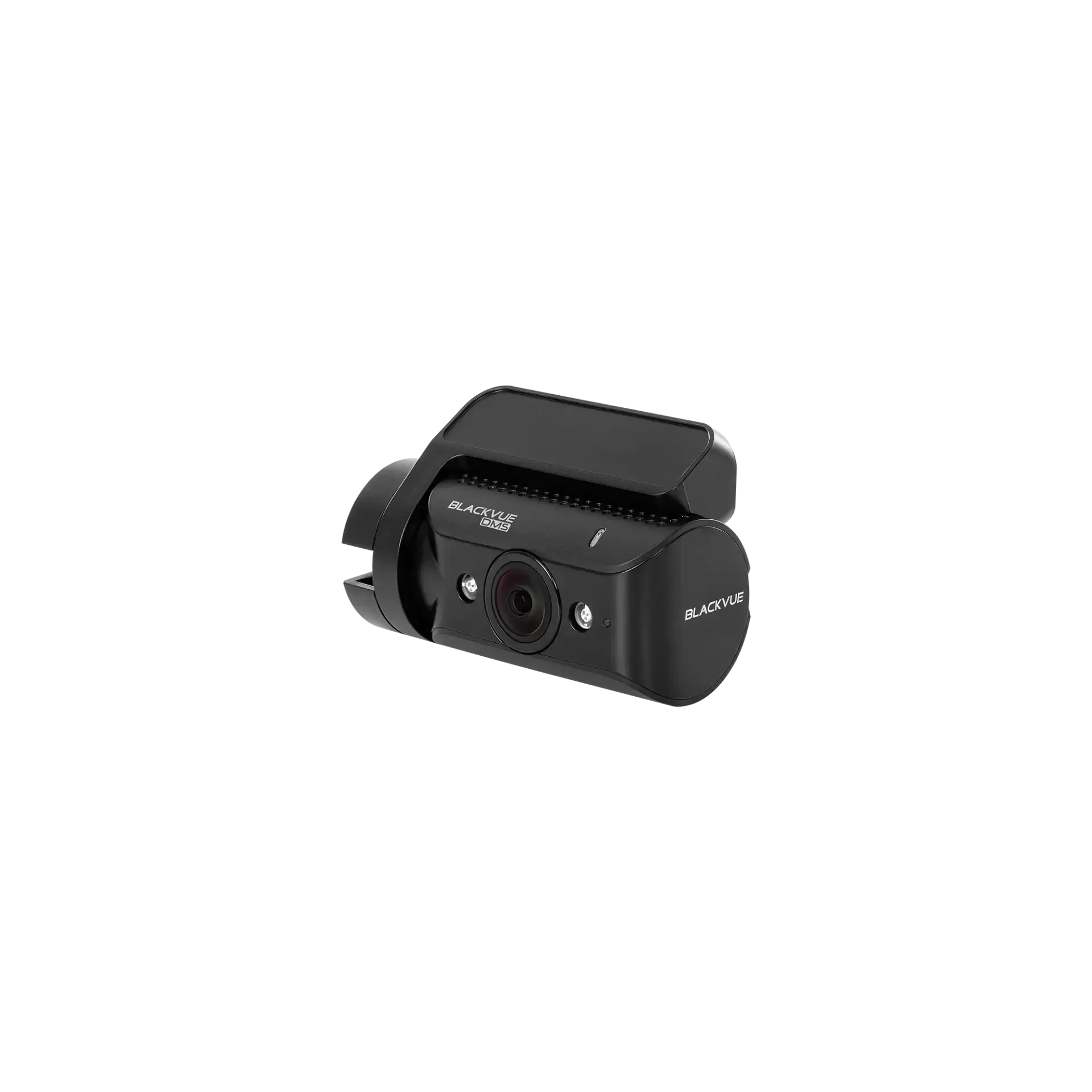

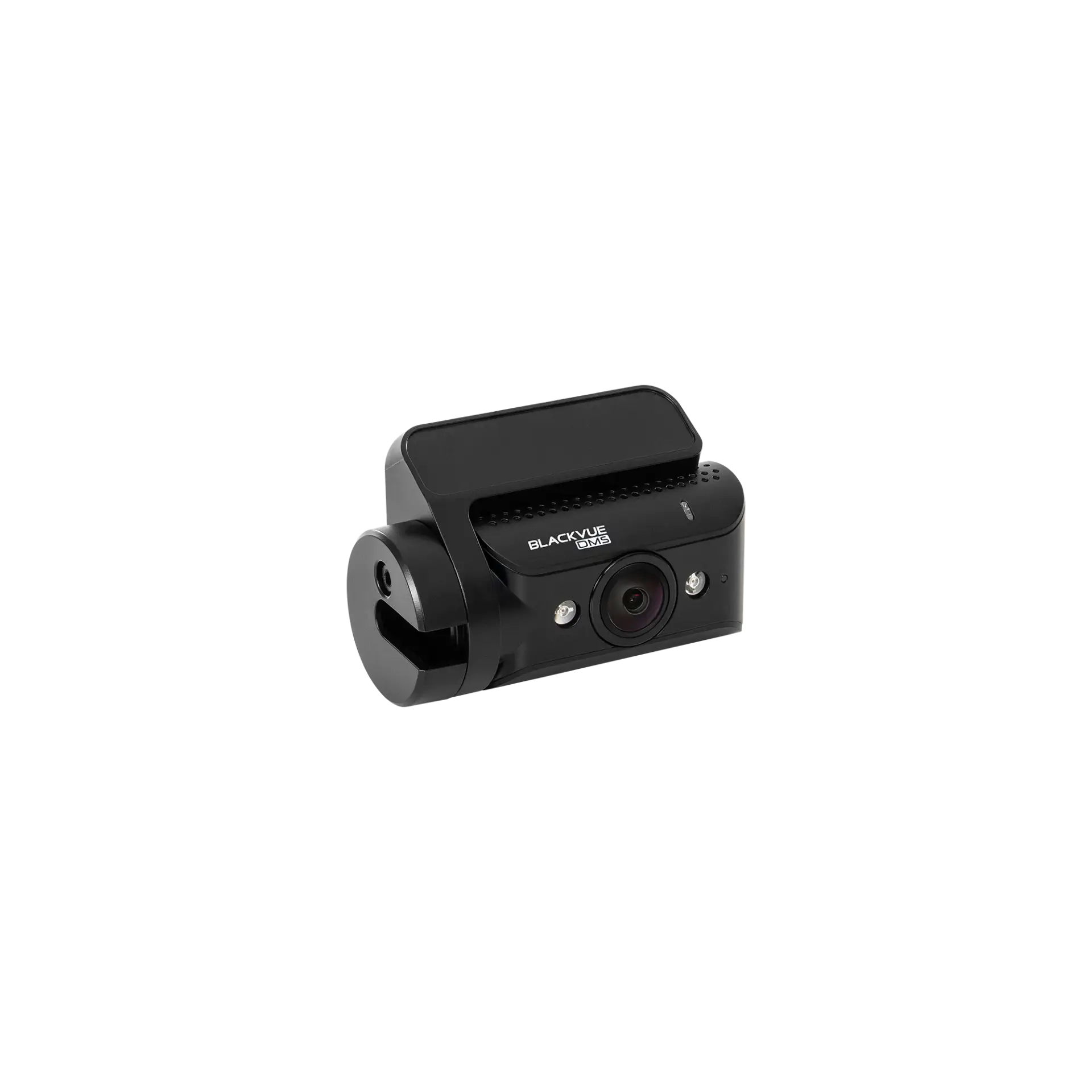

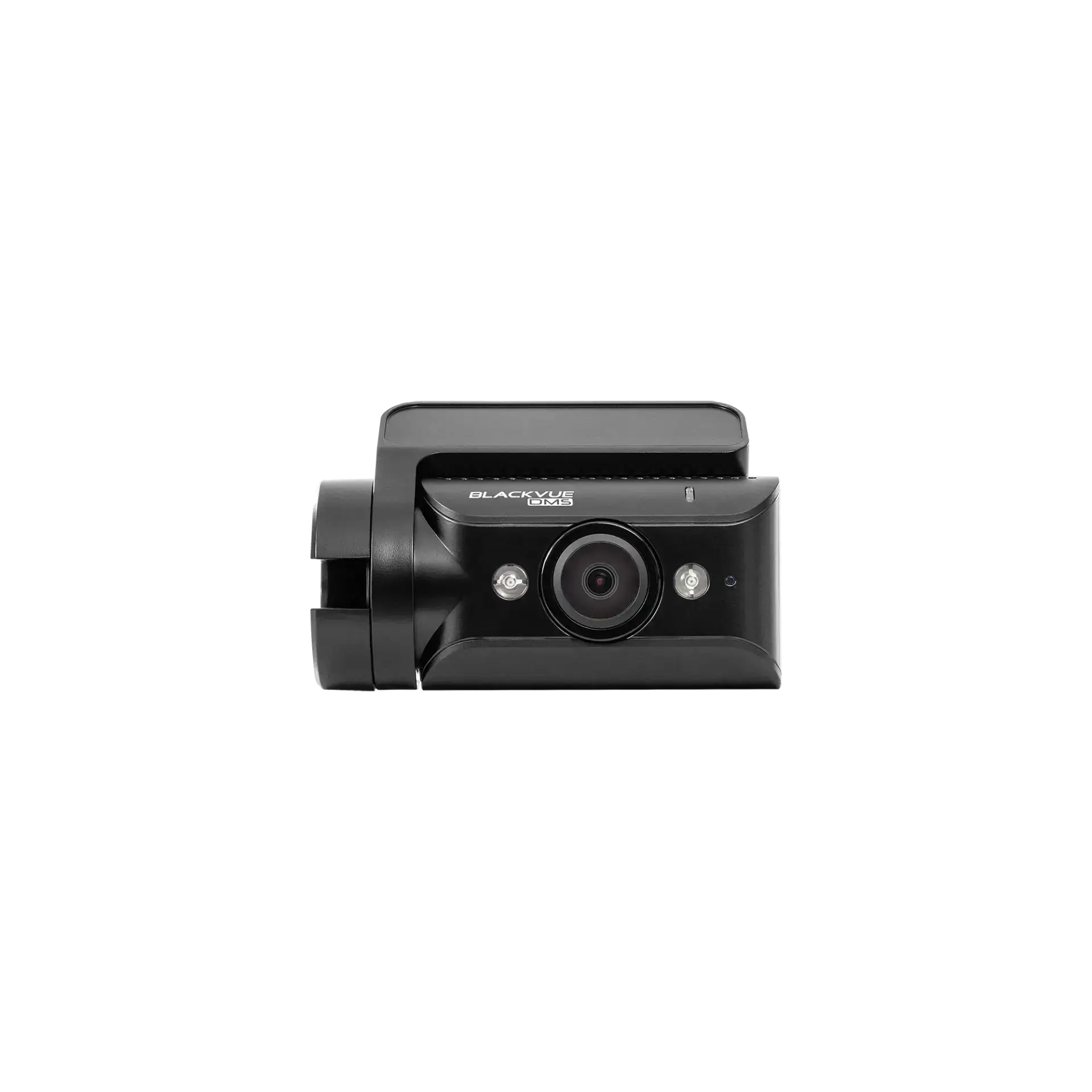

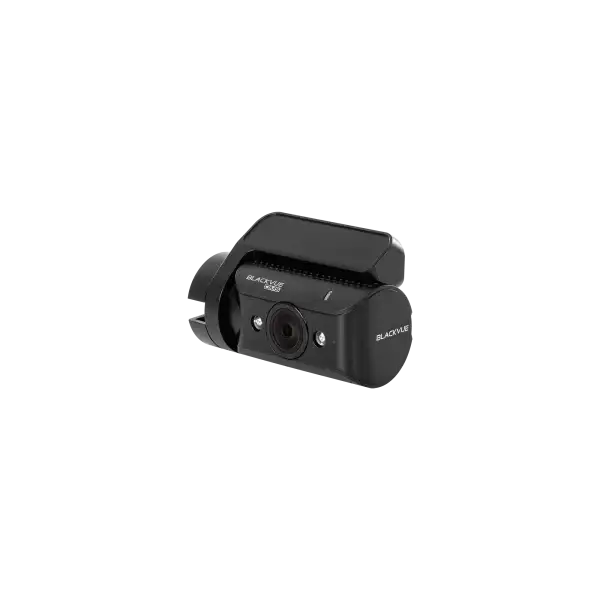

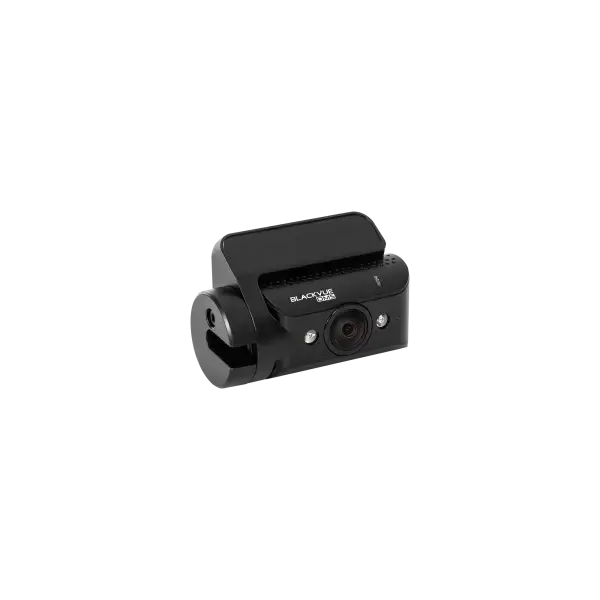

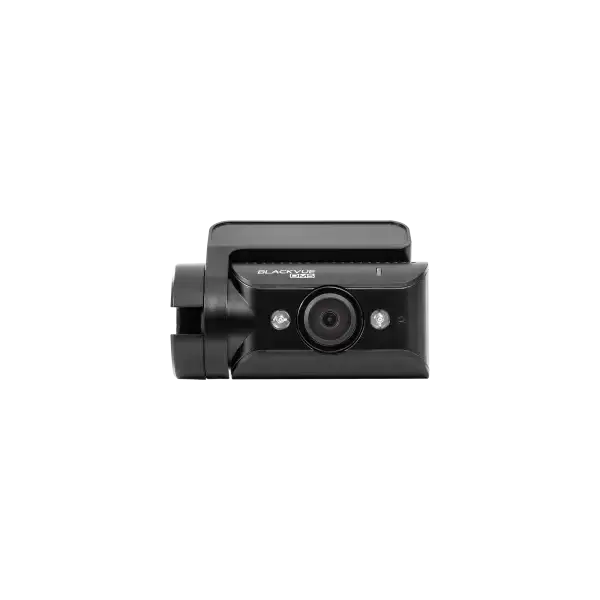

Driver Monitoring System camera (RC1-DMS):

Sensor: 2.1MP Sony STARVIS™ CMOS sensor.
Resolution: Full HD (1920×1080).
Framerate: 30 frames per second.
Diagonal view angle: 109 degrees.
Max bitrate: 10 megabits per second.

Stay safe at the wheel with drowsiness and distraction alerts

The infrared Driver-Monitoring System (DMS) Camera is designed to improve driver’s safety by helping prevent risky behaviors. The DMS Camera monitors the driver at all times. Its algorithm can detect statuses such as:

• Driver absence: Event recording and push notifications
• Distraction*: in-vehicle alerts, Event recording and push notifications
• Drowsiness**: in-vehicle alerts, Event recording and push notifications
• Seatbelt missing: in-vehicle alerts, Event recording and push notifications

As soon as the DMS camera detects a status, the front camera’s speaker emits a beep and spoken message to alert the driver. Meanwhile push notifications are sent to the owner if the camera is connected to the Cloud.
The RC1-DMS also records clear videos of the vehicle’s interior, including in Parking Mode.

(*) Distraction status triggers only when the GPS receives a signal and the detected speed is above 30km/h or 18.6mph.
(**) Drowsiness status triggers when no GPS signal is received and when a GPS signal is received and the detected speed is above 30km/h or 18.6mph.

Seamless Pairing

Easy setup with the BlackVue App. Secure and passwordless.

Seamless Pairing

Secure and effortless setup. No password needed.

Simply connect to your dashcam without leaving the BlackVue App.

With Seamless Pairing, setting up your dashcam is a breeze. Just power the dashcam, then easily connect from the BlackVue app and follow the simple instructions.

You can use either:

• Pair the provided wirelesss button and use it in the Seamless Pairing process to confirm your dash cam.
• Or simply scan the QR code enclosed in your dash cam’s packaging.

Once paired, you can access your dash cam easily from the app anytime afterwards.

Whether you want to browse your dashcam’s files and settings or connect your dashcam to the Cloud, Seamless Pairing makes everything easy and intuitive.

Naturally heat-resistant

You can install the Box away from the sun. No more worrying about overheating.

Designed to minimize overheating

Store the box unit in a cool location.

With standard dash cams, the main processor is located in the front camera, typically exposed to the sun.
In the Box Series dash cams, the processor is located in the box unit, which can be installed in a cooler location of your vehicle.

Less stress on the microSD card

By keeping the box unit in a cool location, you can also minimize the stress on the microSD card, potentially increasing its lifespan.

Designed for stealth

Smaller cameras and secure recording box unit.

Built-in stealth

Separate recording unit to store in a safe place

Unlike conventional dash cams where the microSD card is located in the front camera, the “Box” recording unit can be installed in a secure and/or hidden location of the vehicle, such as the glove compartment, under a seat or anywhere else out of sight.

Smaller front camera

The front camera is 35% shorter and more compact than a regular front camera. This minimizes the likelihood of being spotted by a potential robber.

This means in the event of a break-in, a thief would have a harder time either spotting the cameras or finding the Box unit that contains the videos.

Security-enhanced

Designed from the ground up to prevent tampering

The DR770X Box Pro is designed from the ground up to prevent tampering.

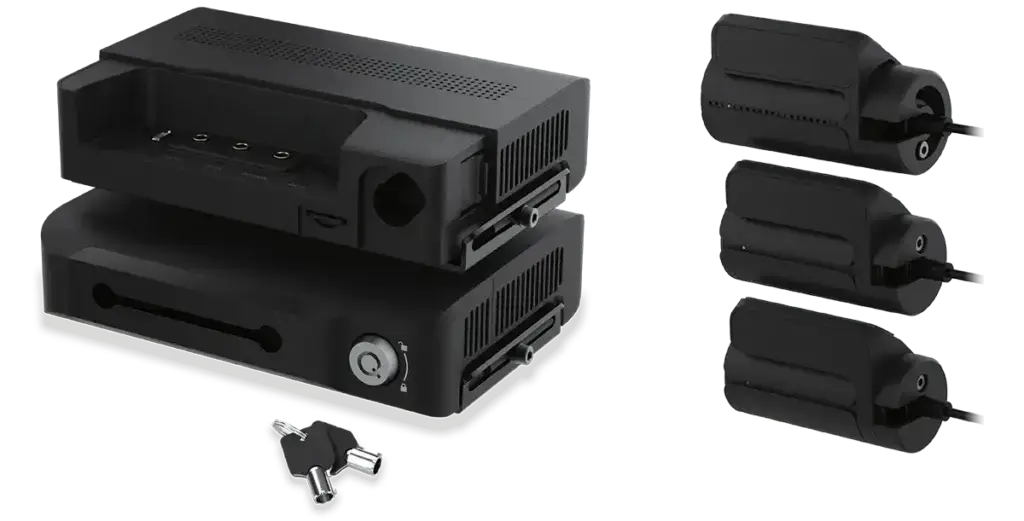

Main unit: cover with lock and key to prevent access to the microSD card and the cable connectors.

Cameras: covers with hex screw to prevent the unplugging of cables and lock the camera angle in the mount.

Triple protection

• Locks the dashcam’s angle via a hex screw to prevent rotation.
• Blocks the access to the microSD card slot.
• Protects against the unplugging of the power, video, and USB cables.

Free App and Viewer

BlackVue App (iOS, Android) and Viewer (Windows/Mac/Web)

Easily manage your video files

Easily change your BlackVue configuration settings and browse your videos on your mobile or computer.

With the BlackVue App, connect to your BlackVue to access files and check real-time Live View for easy setup of your dashcam.
With the SD Card Viewer, connect your dashcam’s microSD card to your computer to view and backup footage in bulk, as well as export clips, remove sound, etc.

The Web Viewer lets you manage your Cloud-connected dashcams from any web browser at blackvuecloud.com.



Your videos are safe

Built-in file protection and failure alerts

Event Files Overwrite Protection: dashcams record in a loop, overwriting older files when the memory is full. BlackVue can prevent Event files (triggered manually or by impacts) overwriting. Up to fifty (50) files can be protected this way. You can choose to allow new Event files to overwrite past Event files, thus keeping the latest fifty.

Adaptive Format-Free File Management: this BlackVue-developed file system improves recording stability and requires less microSD card formatting.

SD Card Failure Alert: your BlackVue detects as soon as the microSD card fails and warns you with a “Please check SD card” voice alert.

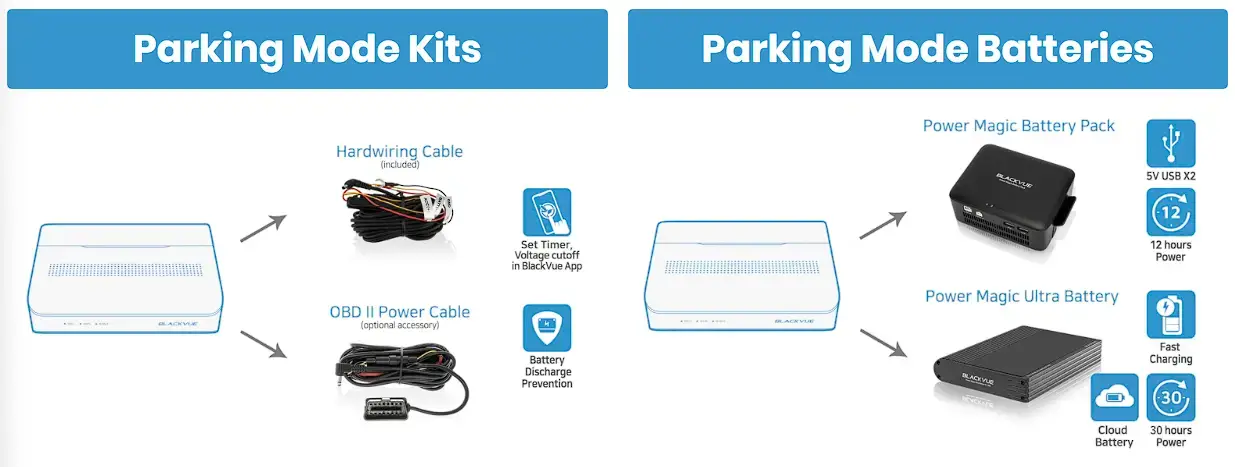

Native Parking Mode

Let your BlackVue watch over your vehicle 24/7. Hardwiring cable included.

Hardwiring cable included
DR770X Box Pro Series can be hardwired to your vehicle’s fuse panel for Parking Mode, without requiring optional accessories. The dashcam will switch to Parking Mode automatically when vehicle ignition is turned off. Voltage cutoff and timer can be set in the BlackVue App.

Parking Mode accessories support
DR770X Box Pro is also compatible with all BlackVue Parking Mode Kits and Batteries.

INTELLIGENT PARKING MODE MONITORING

with the Power Magic accessories.

Enjoy peace of mind knowing that your car is under protection while you are away.

Motion & Impact Detection mode

Region – Based Motion Detection

Motion & Impact Detection Parking Mode detects both:

• Motions recorded by the image sensor (marked “P” in the file list).
• Impacts detected by the accelerometer/G-sensor (marked “E” in the file list).

Choose detection regions to reduce the risk of triggering unwanted motion recordings due to trees swaying in the wind, far-away moving objects, etc.

Time Lapse + Impact mode
