Description

IMAGING MASTERY

4K STARVIS 2, DUAL HDR
Dual 4K Clarity & HDR
ELITE 10 offers improved dash cam performance with advanced HDR technology. It is designed to provide clear and well-balanced video recordings in both bright sunlight and low-light situations.

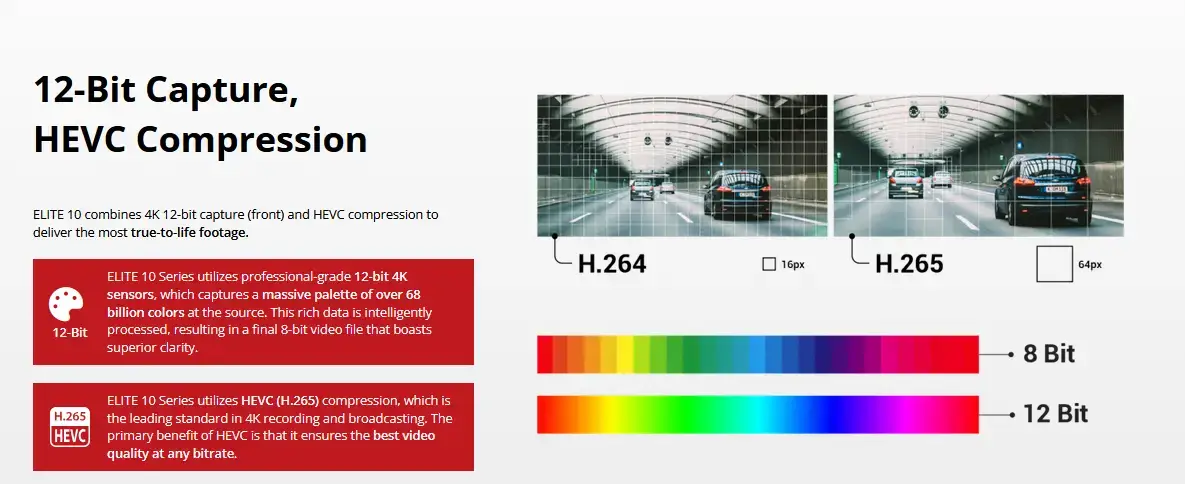

12-BIT CAPTURE, HVEC

PARKING MODE PROTECTION
24/7 Protection for your vehicle
With the Parking Mode Accessories
Dedicated Batteries
Extended Parking Mode without using your vehicle’s battery

View Product
Power Saving Mode
Up to Over 12 Months of Protection!
In Power Saving Mode, the dash cam minimizes power consumption by going into standby, then wakes up on impact and goes back to standby mode after 1 min recording.
Provides several weeks of protection when hardwired to a car with a healthy battery and up to several months of protection when paired with BlackVue Ultra Battery (B-130A).

Note: buffered recording is not supported in this mode.


SMART EVENT RECORDING
Comprehensive Event Detection
Detects and records driving impacts, parking impacts, sudden acceleration, hard braking, sharp turns, and over speeding using the built-in G-Sensor and GPS.

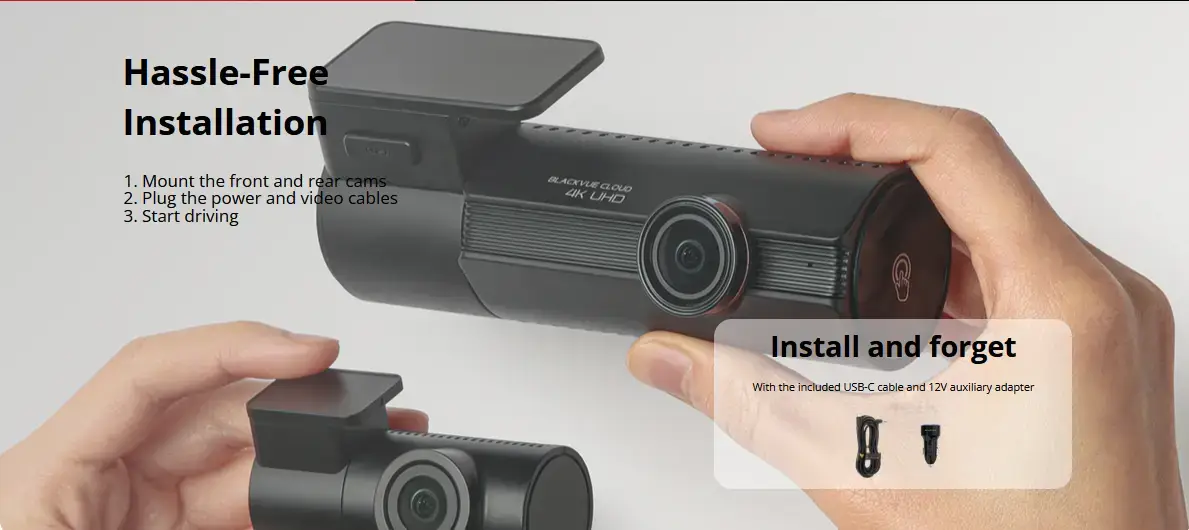

EASY INSTALLATION

QUICK SETUP

Simple and Secure
With Seamless Pairing, connecting to your dash cam with the BlackVue App is easy as 1, 2, 3.
1. Tap + Camera 2. Select your BlackVue in the list 3. Tap the touch sensor
That’s it! Your camera is added a ready for use.
SLEEK DESIGN
Stealthy, Reliable and Functional

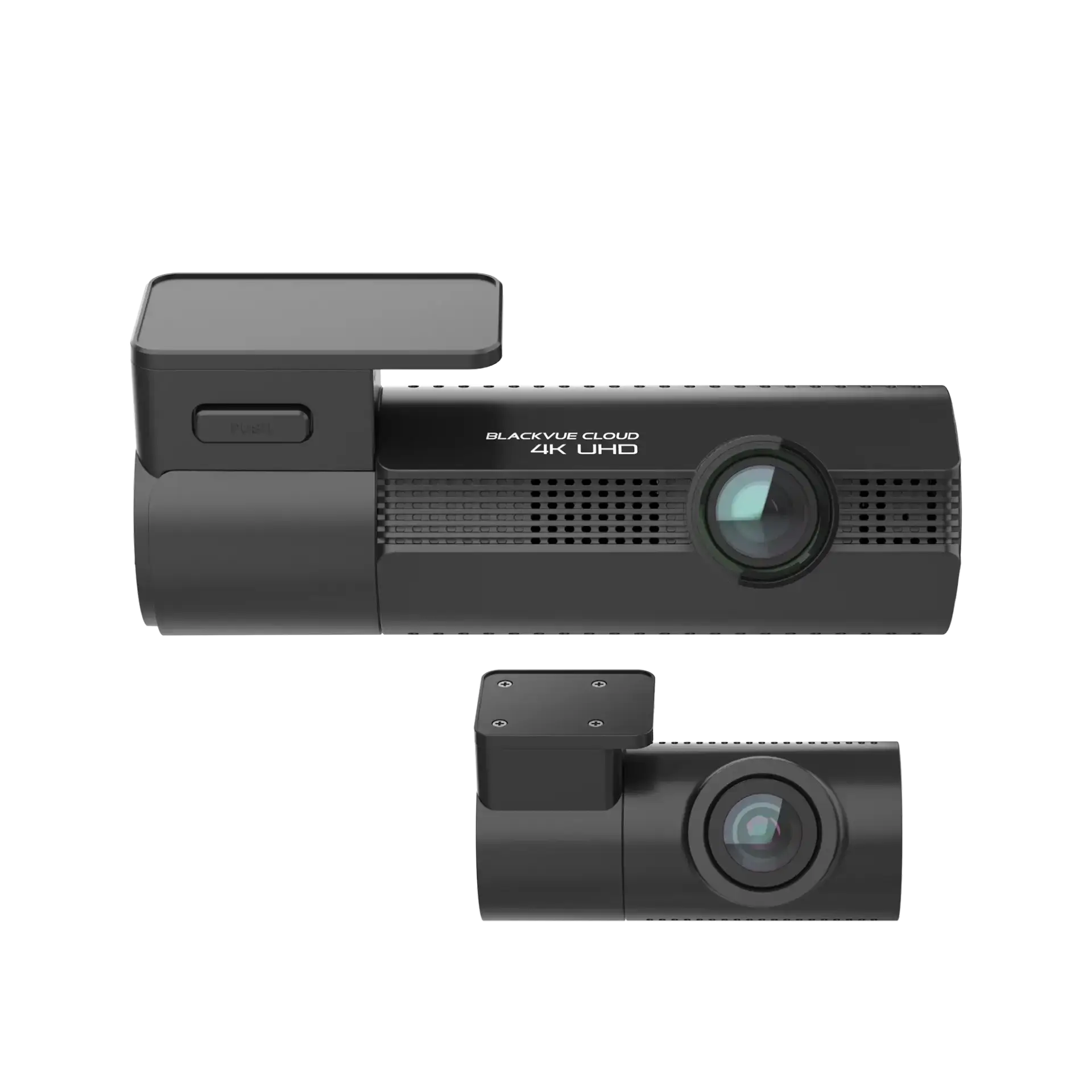

BlackVue ELITE 10 is designed with stealth, durability and functionality in mind.

FUNCTIONAL
Compact and Functional Design
USB Port: to connect the optional LTE Connectivity Module (CM100G LTE)
Power Button: short press to turn on, low press to turn off.
MicroSD Slot: lift the cover to access the microSD card.
Speaker | Microphone: ELITE 10 provides voice prompts in 17 languages and records clear audio (can be switched off in settings).
LED Indicators: view recording and connectivity statuses.
Touch Sensor: tap to trigger Manual Event recording.

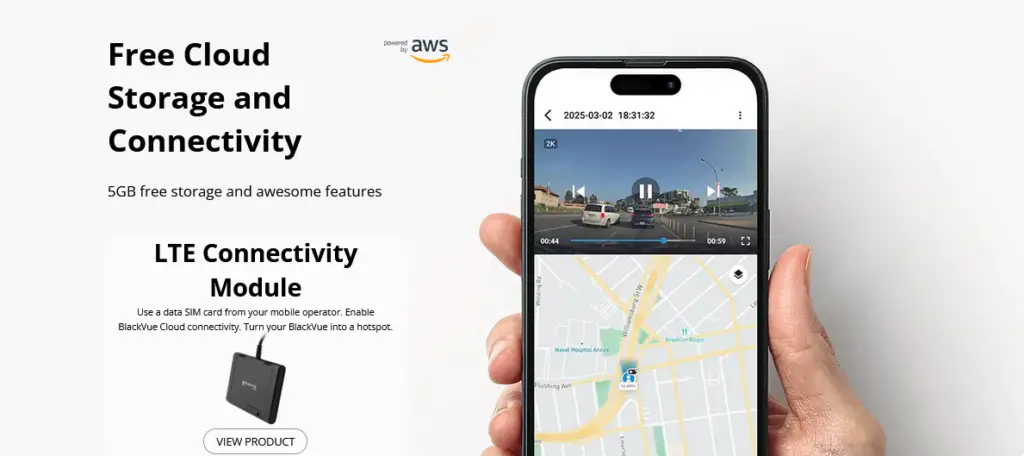

FREE STORAGE

What’s Included

Technical Specs
| Specifications | |
|---|---|
| Model Name | ELITE 10-2CH |
| Channel | 2CH |
| Highlights | 4K UHD HDR + 4K UHD, 2.4-5GHz Wi-Fi, Cloud (data not included), Power Saving Parking Mode |
| Product Dimensions / Weight | Front: Length 129.7mm (5.12in) x Width 40mm (1.58in) x Height 55.3mm (2.18in), 195g (0.43 lb) Rear: Length 67mm (2.64in) x Width 29mm (1.14in) x Height 39.1mm (1.54in), 40g (0.09 lb) |
| Rear Camera Connection | Coaxial cable |
| Memory Support | microSD card up to 1TB |
| Smart Event Recording | Driving Impact Parking Impact Overspeed Hard Acceleration Hard Braking Hard Cornering (Including 10 sec. Pre-Event buffer) |
| Parking Mode | Power Saving ( < 1mA) Motion Detection Time Lapse (Parking Mode add-on required) |
| Parking Mode Event Voice Notifications | YES |
| Protection Systems | Timer Cut-Off: 1~48H Low Voltage Cut-Off: Passenger Vehicle 11.8~12.5V or Heavy Vehicle 22.8~24V High Temperature Cut-Off (75°C) |
| Imaging Sensor | Front & Rear: STARVIS 2 CMOS Sensor (IMX678) |
| Viewing Angle | Front & Rear: Diagonal 146° , Horizontal 125°, Vertical 68° |
| Resolution Frame Rate | Front & Rear: 4K UHD@30fps (Dual 4K) * Frame rate may vary during Wi-Fi streaming. |
| Video Codec | H.265 (HEVC), H.264 (AVC) |
| Image Quality and Bitrate Front/Rear | Extreme (H.265): 60+30 Mbps Extreme (H.264): 40+30 Mbps High (Default): 30+30 Mbps Medium: 20+20 Mbps Low: 10+10 Mbps |
| Format Free | Adaptive Format-Free (US 10,922,270 B2) |
| Event File Overwrite Protection | Up to 50 event files can be protected from being overwritten |
| SD Card Failure Alert | YES |
| Scheduled Reboot | YES |
| Video File Extension | MP4 |
| Wi-Fi | Built-in (802.11ac – 2.4-5GHz) |
| Cloud Compatible | YES |
| GPS | Built-in (Dual Band : GPS, GLONASS) |
| Microphone | Built-in |
| Speaker | Built-in |
| Impact Sensor | 3-Axis Acceleration Sensor |
| LED Indicators | Front: Recording status, GPS connectivity, A/C (App/Cloud) connectivity Rear: Power LED |
| Button | Power Button: Short press to turn on / Long press to turn off. Touch Sensor: Pressing the touch sensor triggers manual recording depending on the firmware settings. Bluetooth Remote Button (Optional): Manual Recording |
| Operation Temperature | -20 °C − 65 °C (-4 °F − 149 °F) |
| Storage Temperature | -20 °C − 80 °C (-4 °F − 176 °F ) |
| High Temp Cut Off | Approx. 75 °C (167 °F) |
| Backup Battery | Built-in supercapacitor |
| Input Power | DC 12V-24V (DC Plug (Ø3.5 x Ø1.1)) to Wires (Black: GND / Yellow: B+ / Red: ACC) |
| Power Consumption | Normal Mode (GPS On/2CH): 510mA Parking Mode (GPS Off/2CH): 380mA Power Saving Mode: Under 12mW (0.012W) (Avg. <1mA / 12V)* Actual power consumption may vary depending on use conditions and environment. |
| Certifications | Front: Telec, IC(ISED), CE, FCC, RCM, RoHS, WEEE Rear: FCC, IC(ISED), CE, RoHS, WEEE |
| Software | BlackVue Viewer * Windows 7 or higher, Mac Sierra OS X (10.12) or higher FLEETA Web Viewer * Chrome 71 or higher, Safari 13.0 or higher |
| App | BlackVue App, FLEETA App * Android 10.0 or higher, iOS 15.0 or higher |
| Others | Adaptive Format-Free File Management System |
| Bluetooth | Built-in (V2.1+EDR/5.3) |
| LTE | External (with optional LTE Module) |
| Warranty | 2 Years |
Recording Time
| Model | Memory Capacity | Image Quality | Resolution |
|---|---|---|---|
| ELITE 10-2CH | 4K UHD HDR (Front) 4K UHD (Rear) |
||
| 64GB | Extreme (H.265) | 1 HR 20 MIN | |
| Extreme (H.264) | 1 HR 45 MIN | ||
| High | 2 HR 00 MIN | ||
| Medium | 3 HR 00 MIN | ||
| Low | 5 HR 40 MIN | ||
| 128GB | Extreme (H.265) | 2 HR 45 MIN | |
| Extreme (H.264) | 3 HR 30 MIN | ||
| High | 4 HR 10 MIN | ||
| Medium | 6 HR 05 MIN | ||
| Low | 11 HR 25 MIN | ||
| 256GB | Extreme (H.265) | 5 HR 35 MIN | |
| Extreme (H.264) | 7 HR 10 MIN | ||
| High | 8 HR 25 MIN | ||
| Medium | 12 HR 10 MIN | ||
| Low | 23 HR 00 MIN | ||
| 512GB | Extreme (H.265) | 11 HR 25 MIN | |
| Extreme (H.264) | 14 HR 35 MIN | ||
| High | 17 HR 05 MIN | ||
| Medium | 24 HR 40 MIN | ||
| Low | 46 HR 30 MIN | ||
| 1TB | Extreme (H.265) | 23 HR 00 MIN | |
| Extreme (H.264) | 29 HR 20 MIN | ||
| High | 34 HR 20 MIN | ||
| Medium | 49 HR 25 MIN | ||
| Low | 93 HR 20 MIN | ||
| Bitrate (Mbps) (Front + Rear) |
Extreme (H.265) | 60 + 30 | |
| Extreme (H.264) | 40 + 30 | ||
| High | 30 + 30 | ||
| Medium | 20 + 20 | ||
| Low | 10 + 10 |
